On3 Special - Caboose 901
901 - new brass parts
![](../../images/caboose_901_oil_tank_450.jpg)

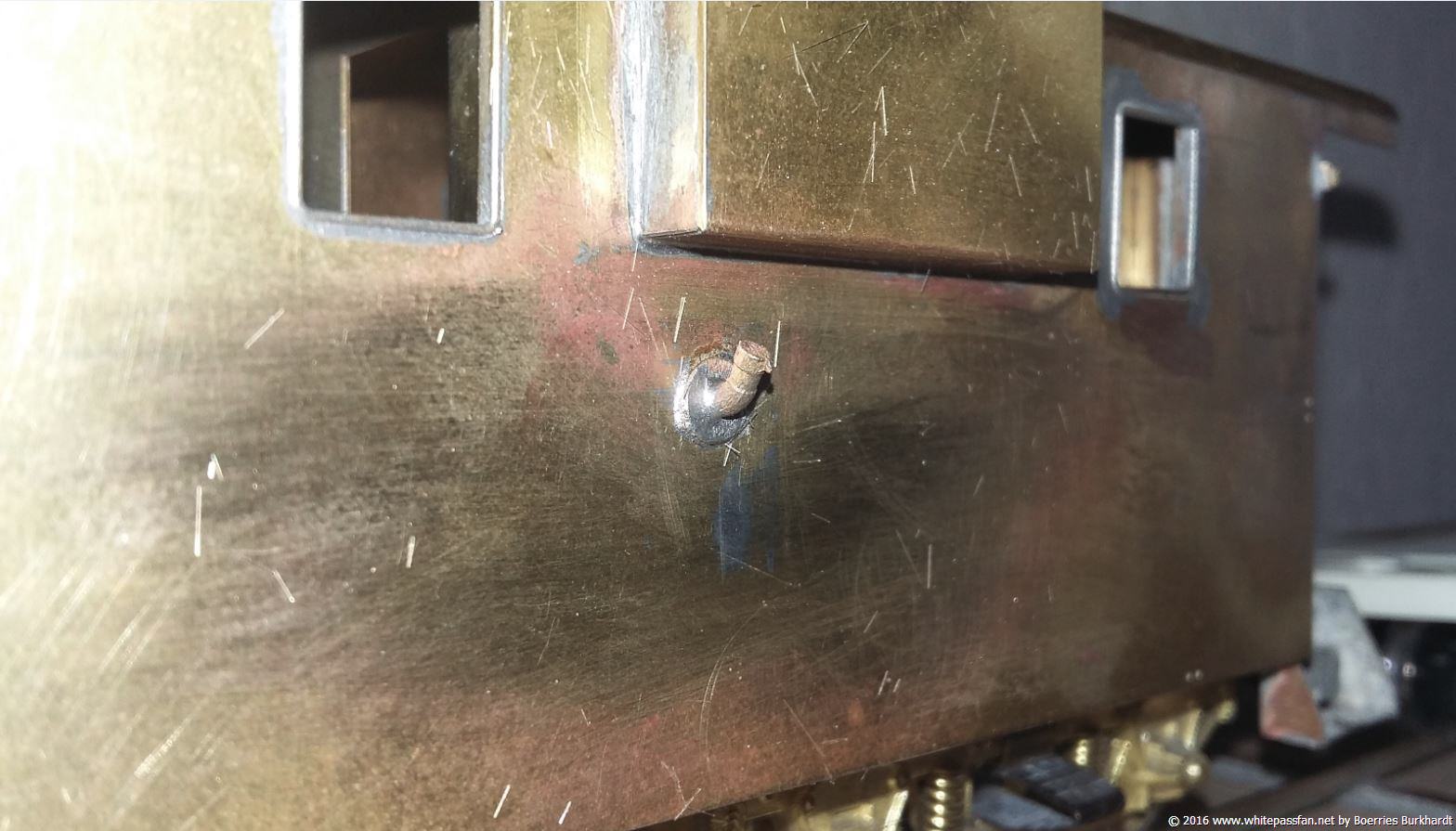

Winter 2015, new brass parts arrived
This time, the latest parts arrived. I designed the original parts. Most of the White Pass passenger cars and cabooses had this oil filler.
901 - On3 Model
![](../../images/web_burkhardt_brass_3_450.jpg)

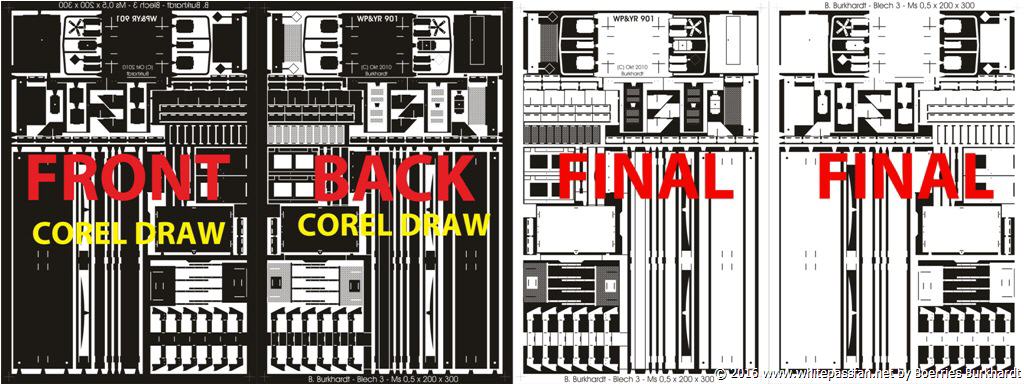

Last Folio for brass engraving
Left the final file at Corel Draw. Left Front, right Back, and the two on the right side are the folio before bring them on the brass sheet. On the final two images right, all black parts are gone after put them into the etch. The white parts will remain. But to draw its easier to have the remain parts in Corel Draw black.
901 - On3 Model
![](../../images/web_burkhardt_brass_3_front_450.jpg)

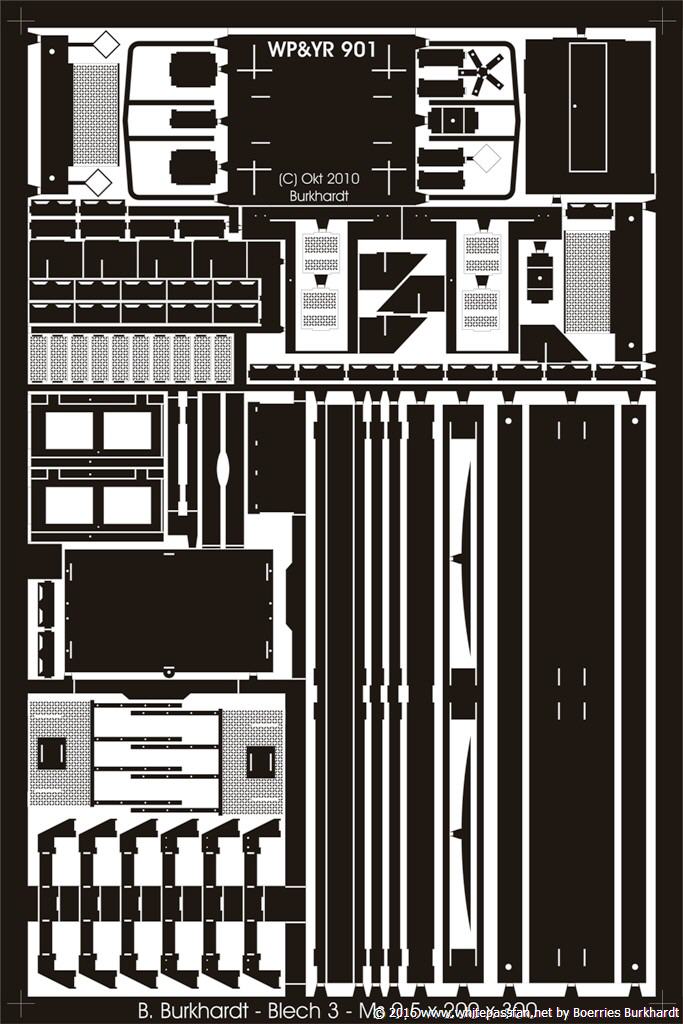

new step - slide for brass engraving
here is the brand new folio for the second brass sheet.

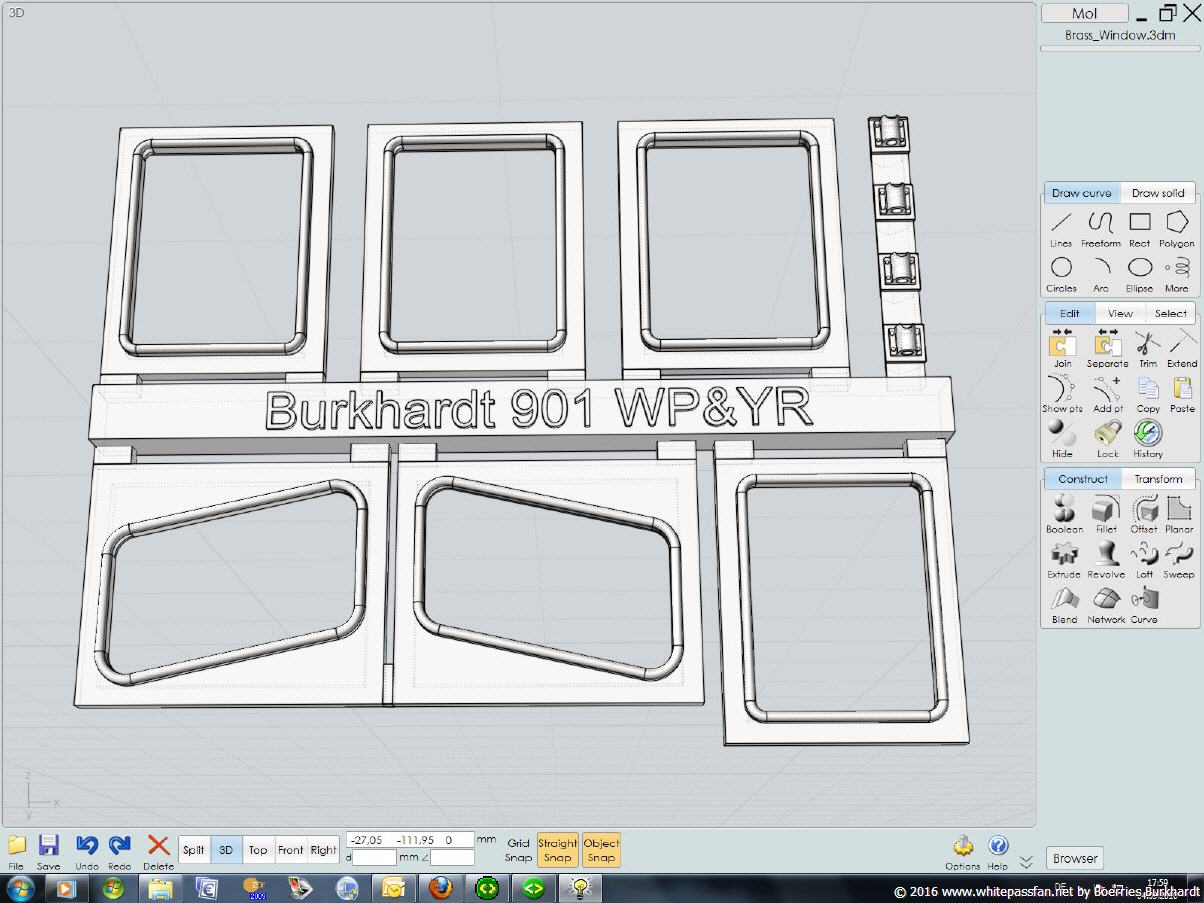

CAD Parts
![](../../images/cad_cast_901_windows_450.jpg)
CAD View
The caboose 901 ready for the wax plotter and later as basic for the brass casting. Boerries Burkhardt.

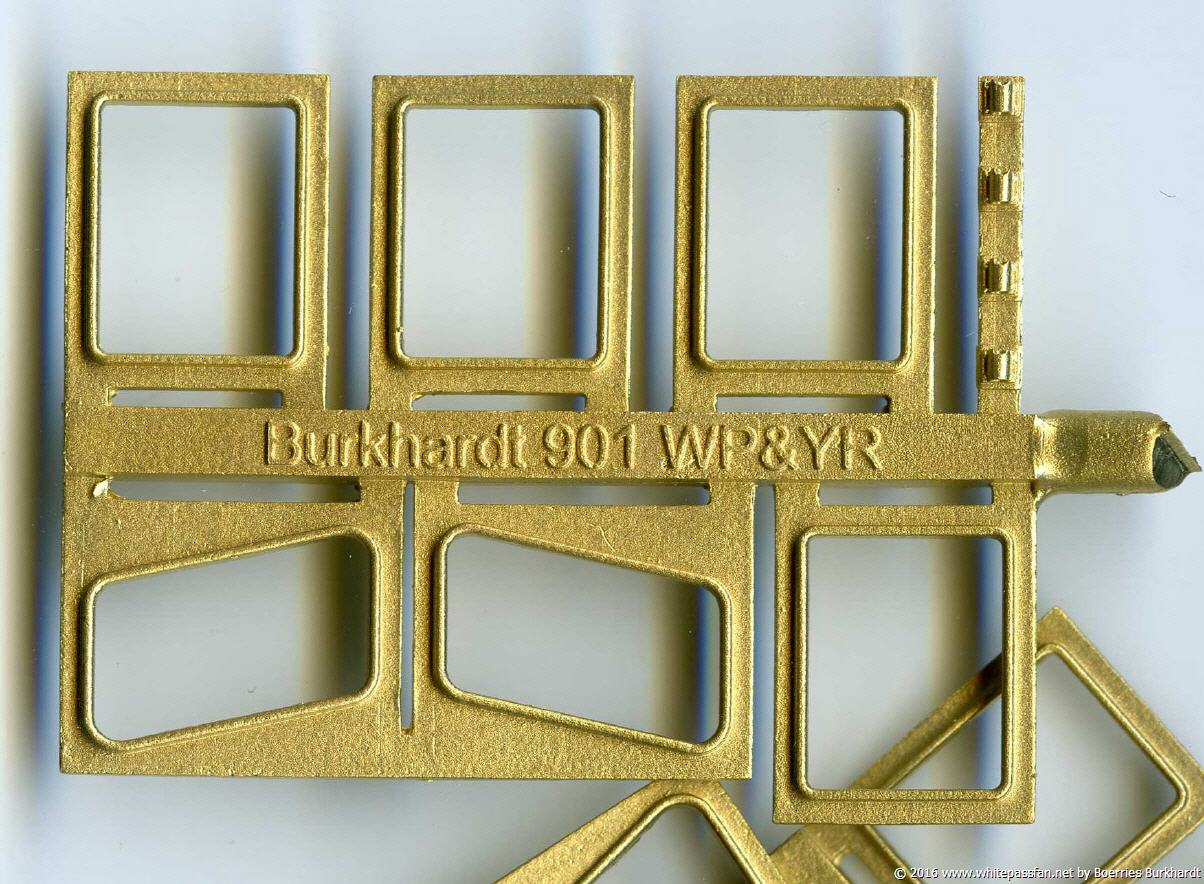

Brass Parts
![](../../images/brass_cast_901_windows_450.jpg)
Reality View
Here we see the same parts after made in brass. The quality is perfect and 4 side windows, two coupola windows and the holders for the plag or lamp are ready to use.
Brass Parts
![](../../images/brass_window_back_450.jpg)

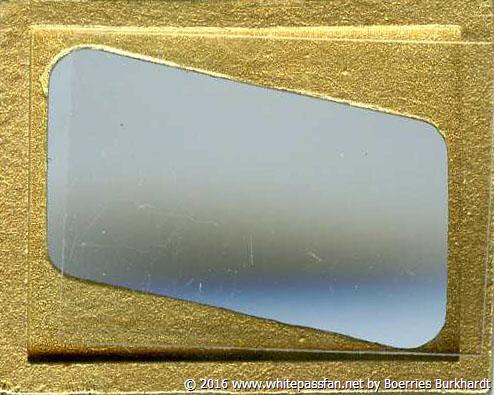

Coupola window from the back
The back of the window is special made to keep a plastic or real glass in the window.You can paint this part, glue the glass and than glue the black painted part to the frame or sold it directly on the side.
Caboose 901 Floor
![](../../images/901_floor_450.jpg)
901 - Floor
CAd view of the caboose floor.
Caboose 901 Coupola
![](../../images/caboose_coupola_450.jpg)

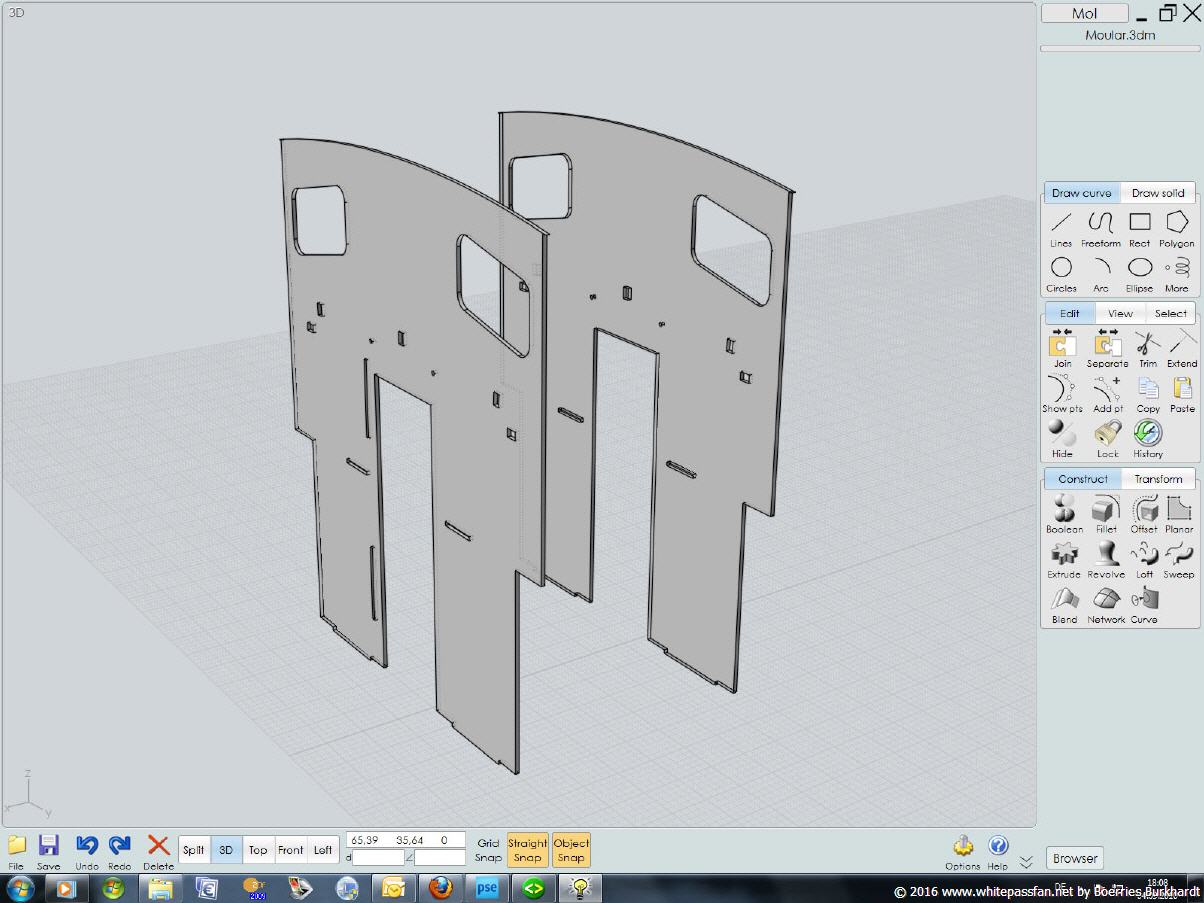

901 - Front / Back of Coupola
The windows are already wider to take the brass windows for a perfect museum quality model.
901 - On3 Model

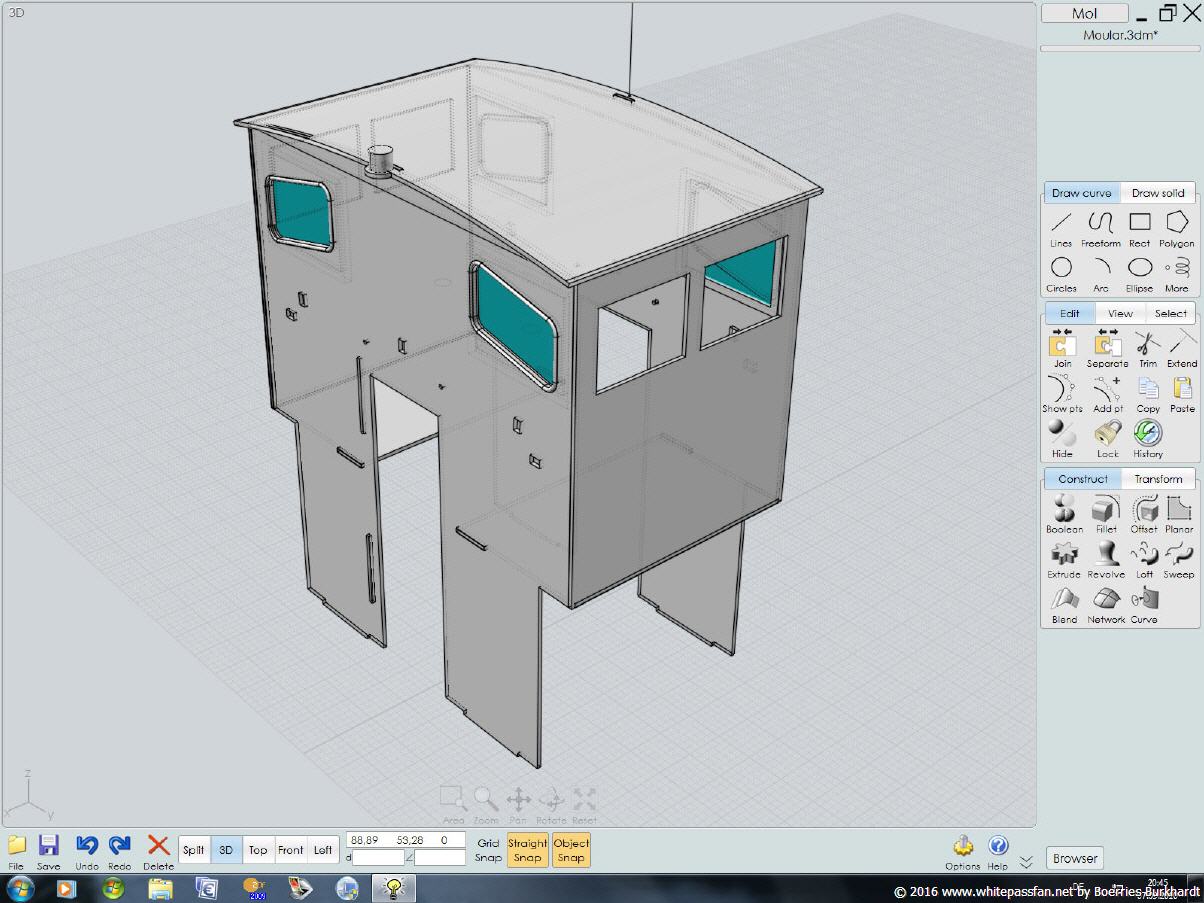

![](../../images/901_coupola_450.jpg)
901 - Coupola with windows and roof
Complete part to plug on floor.
901 - On3 Model

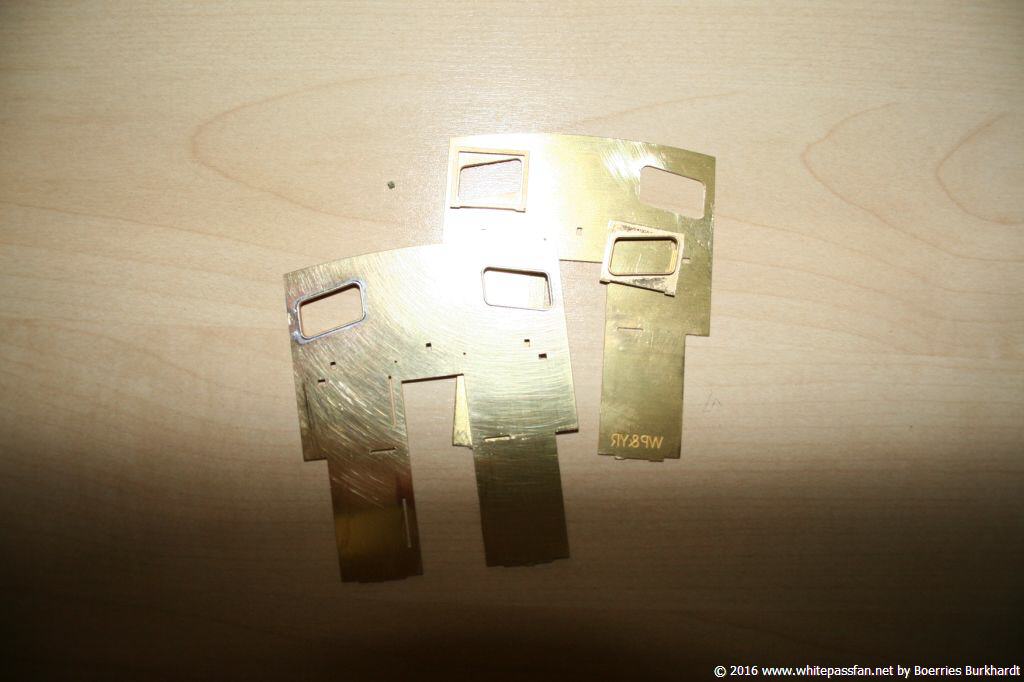

![](../../images/img_6746_450.jpg)
Brass casting windows
Here I added the first brass castings to the front and back of the caboose
901 - On3 Model
![](../../images/901_coupola_floor_450.jpg)
Add front and end
The front and end were added.

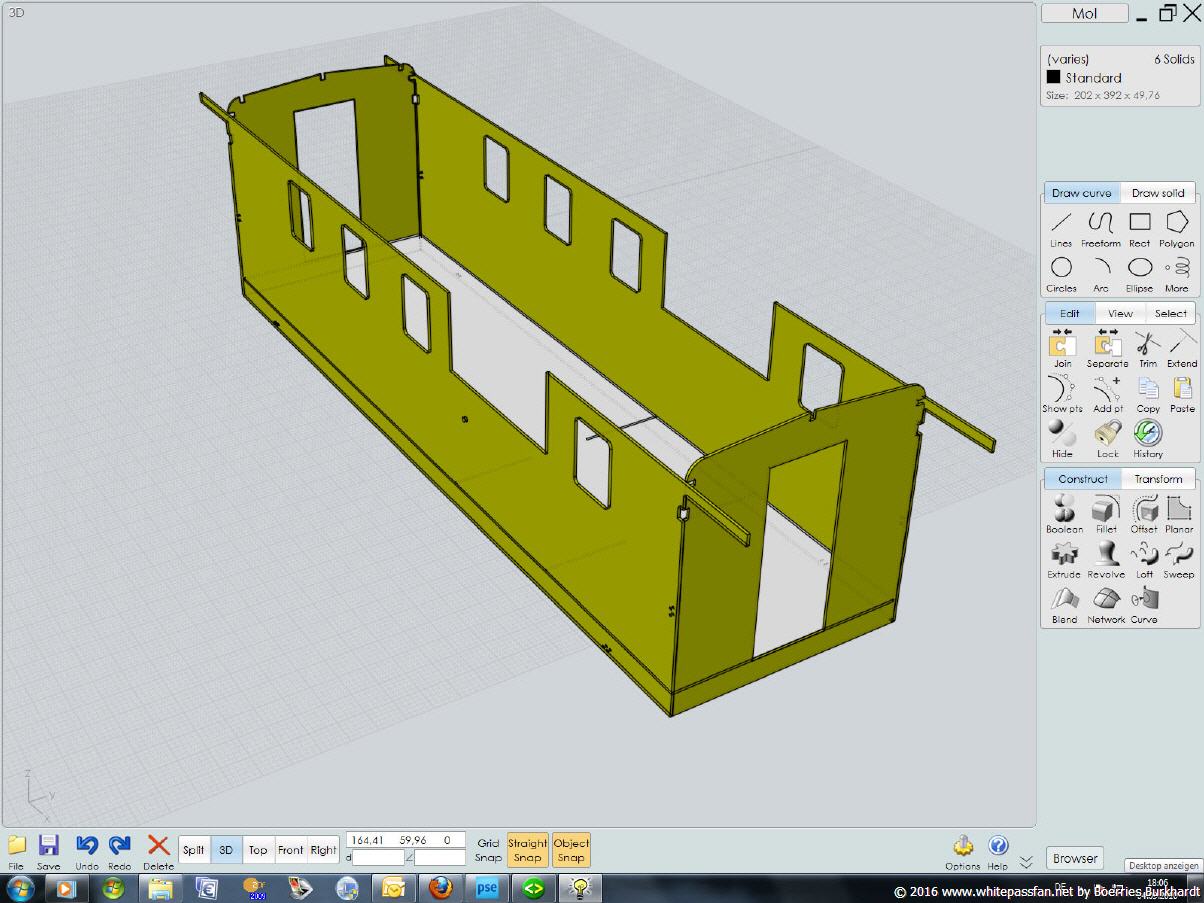

Caboose 901 Basic
![](../../images/caboose_901_basic_450.jpg)
901 - Basic Frame
The four sides were added to the floor.
901 - On3 Model
![](../../images/img_6724_450.jpg)

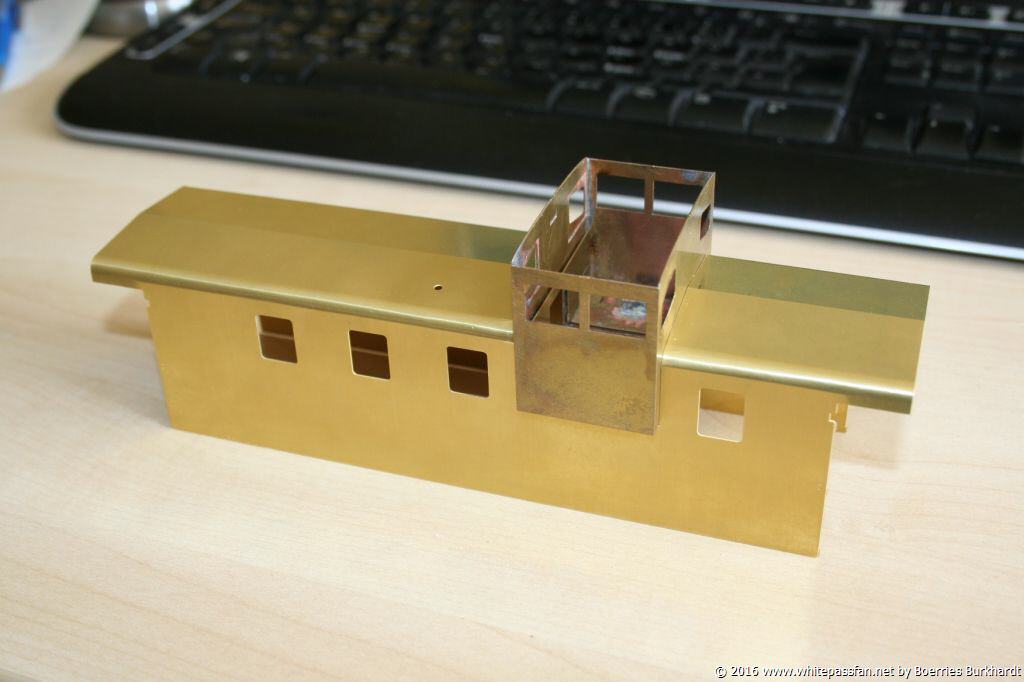

The body of the caboose made out of brass
Just bend the brass engraving sheet.
901 - On3 Model
![](../../images/901_body_shell_450.jpg)
Now the side were added
901 - On3 Model
![](../../images/901_end_side_ready_450.jpg)

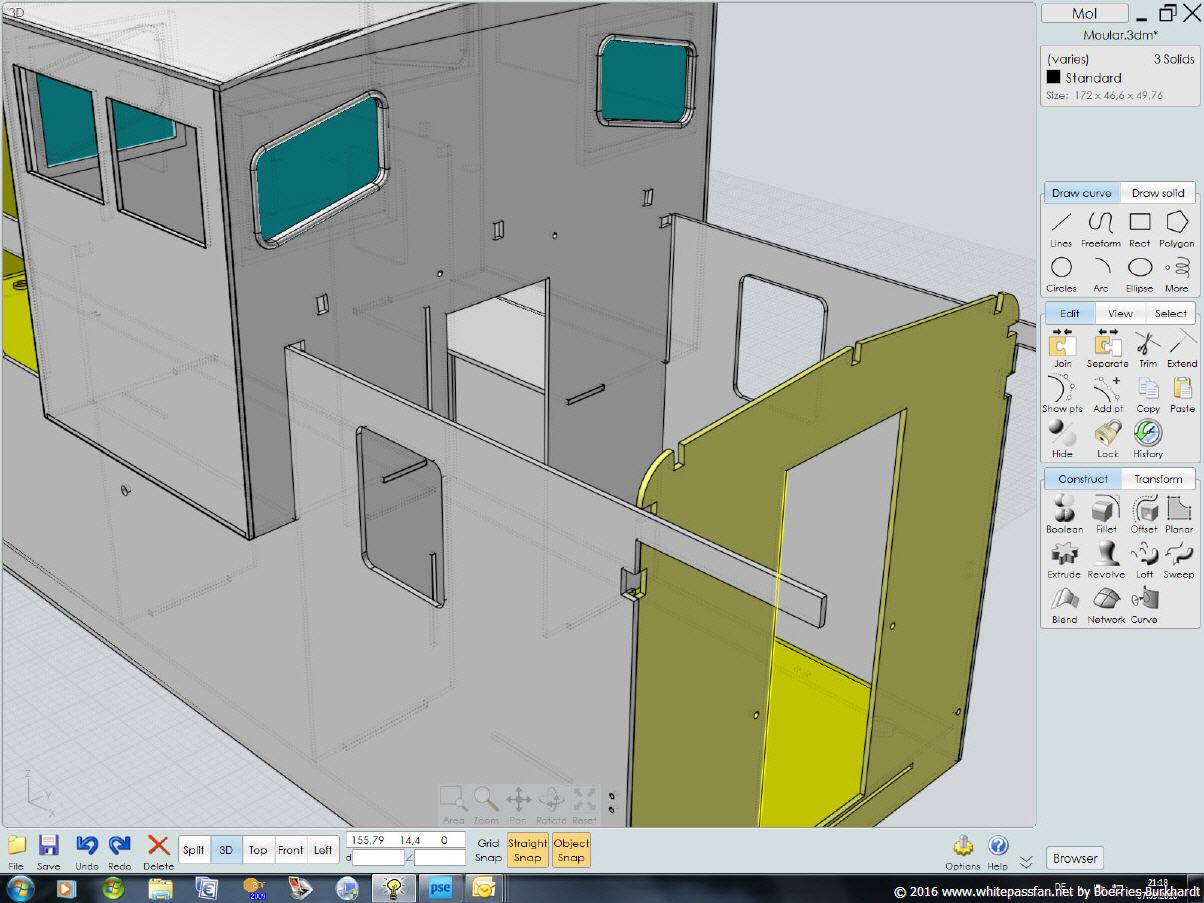

Corner of caboose 901
The model is now without the brass casting parts.
901 - On3 Model
![](../../images/img_6753_450.jpg)

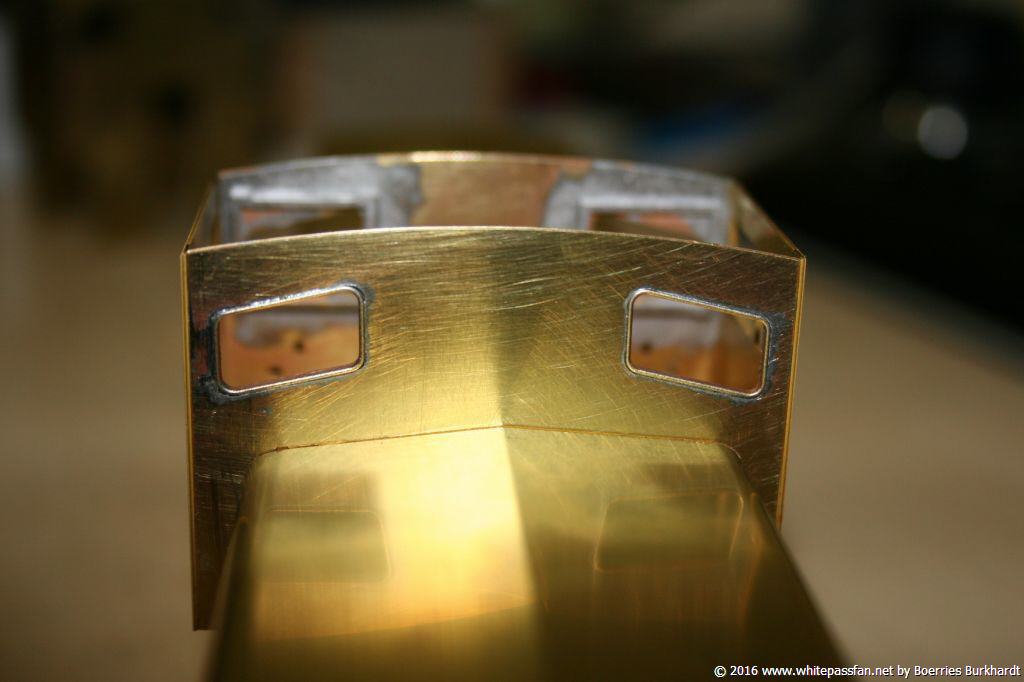

Brass castings added
Here the brass windows shown on the coupola.
901 - On3 Model

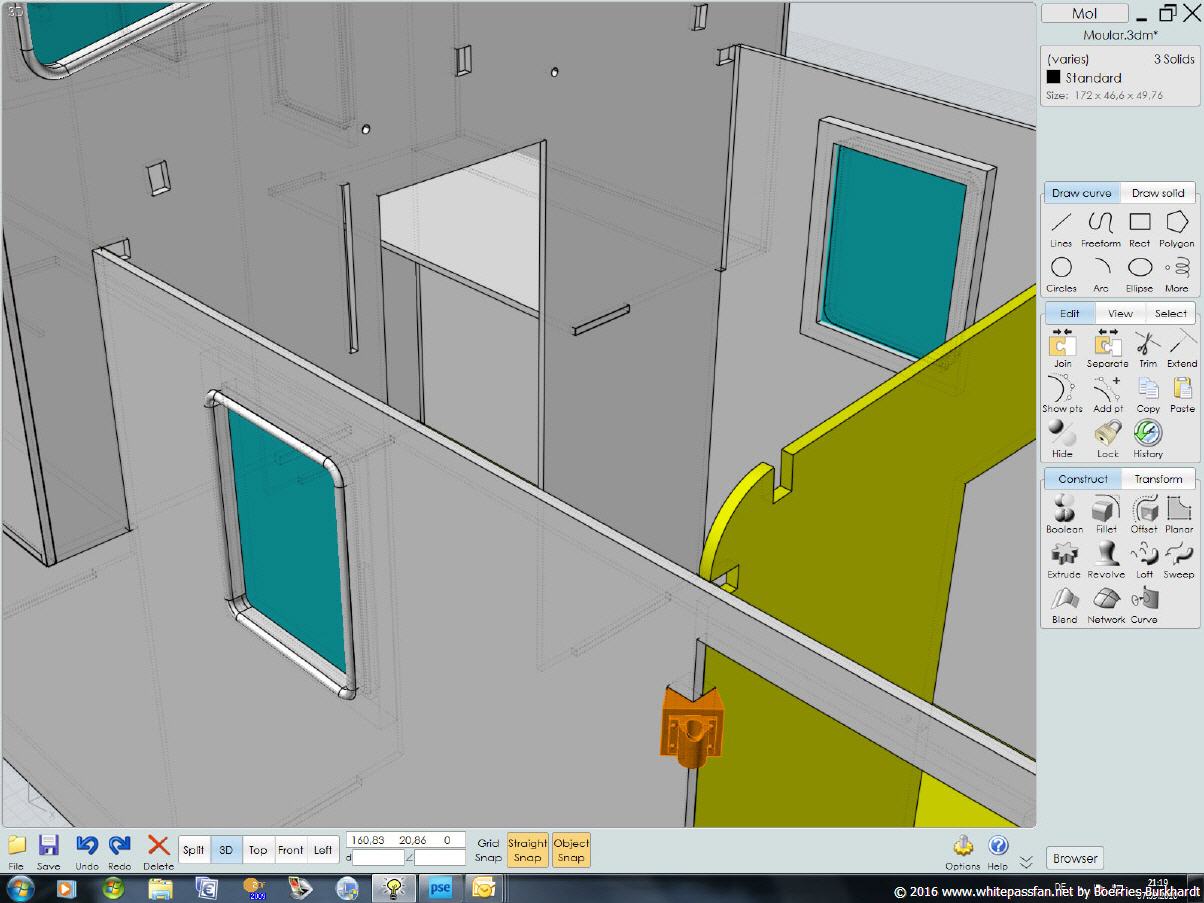

![](../../images/901_window_flag_lamp_holder_450.jpg)
Castings were added to side and windows
901 - On3 Model
![](../../images/webimg_6786_450.jpg)

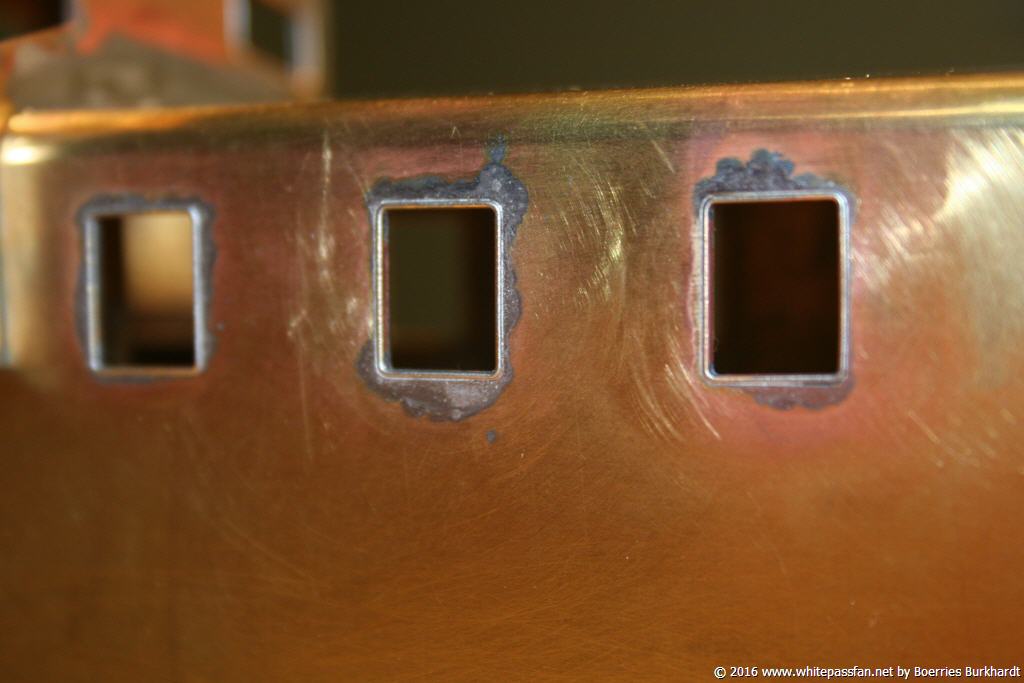

window casting
now in place
901 - On3 Model

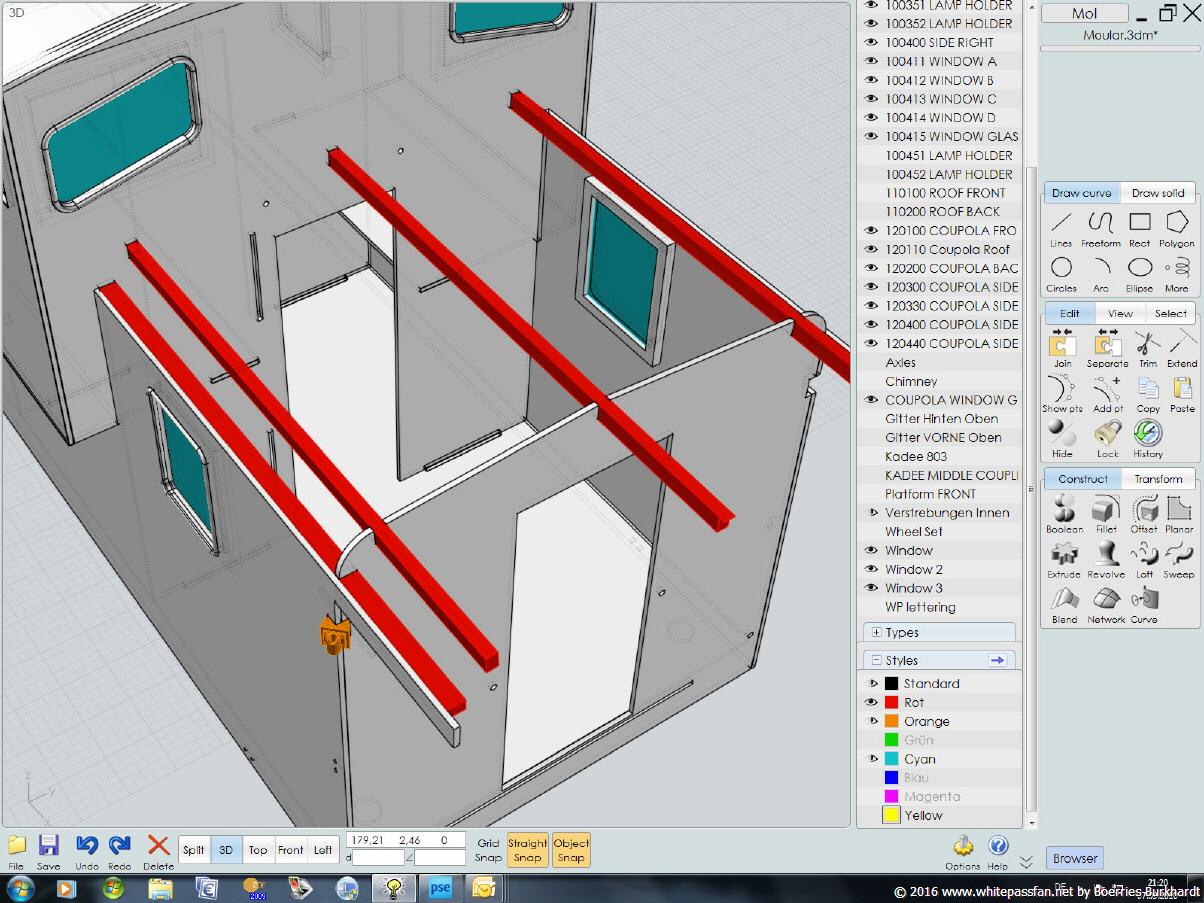

![](../../images/901_support_less_roof_450.jpg)
Roof support made out of brass rod
901 - On3 Model

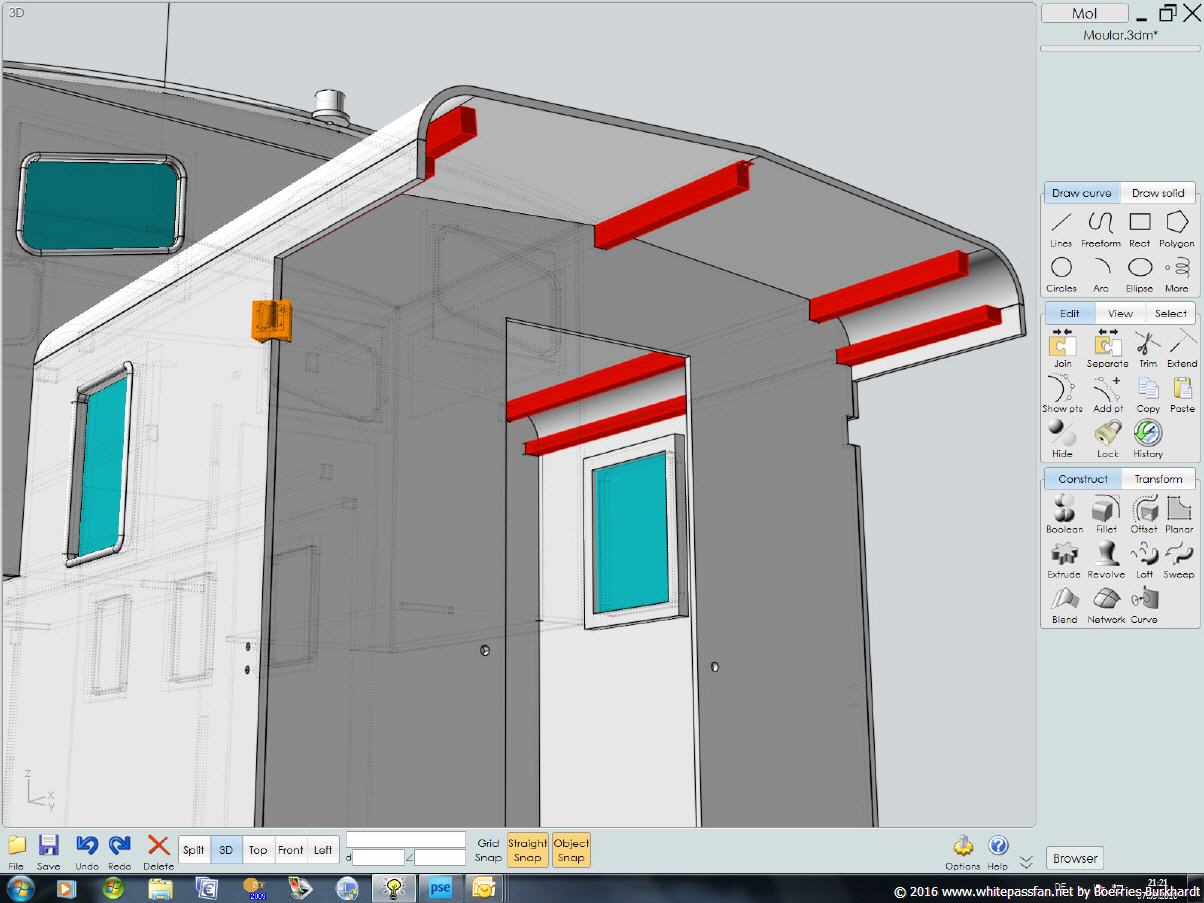

![](../../images/901_roof_support_450.jpg)
Roof now on the side.
901 - On3 Model
![](../../images/img_6770_450.jpg)

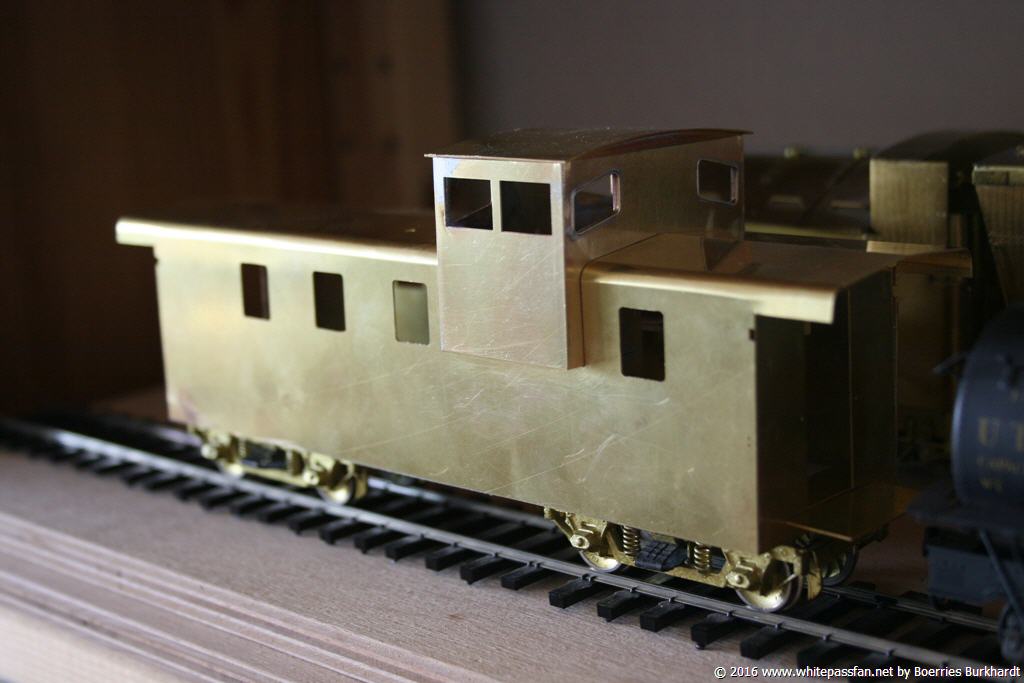

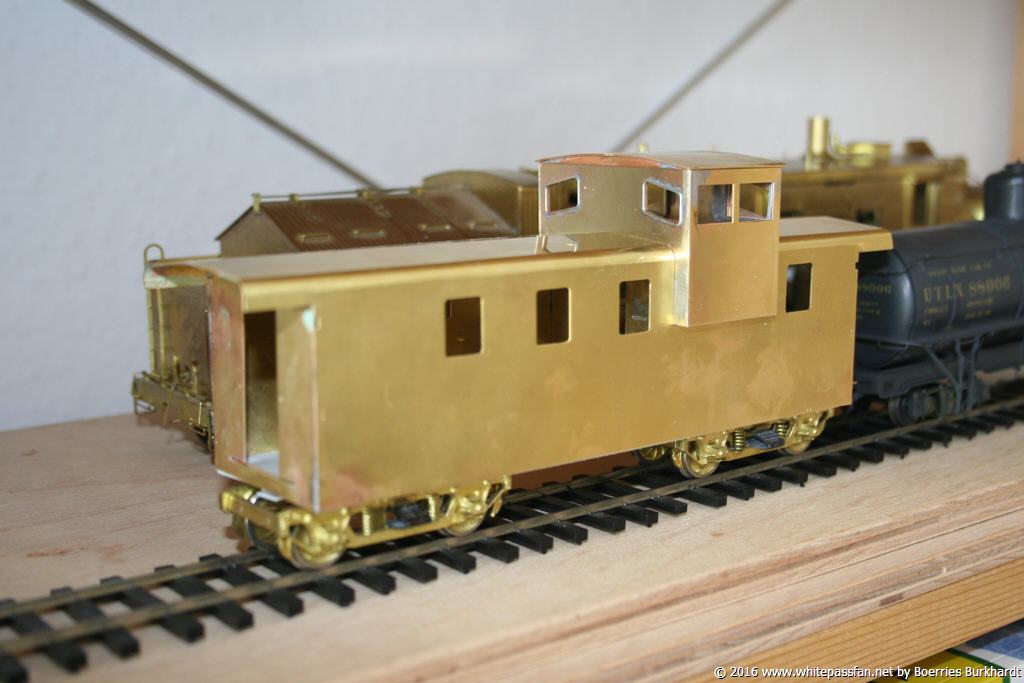

New coupola on body
901 - On3 Model
![](../../images/img_6771_450.jpg)

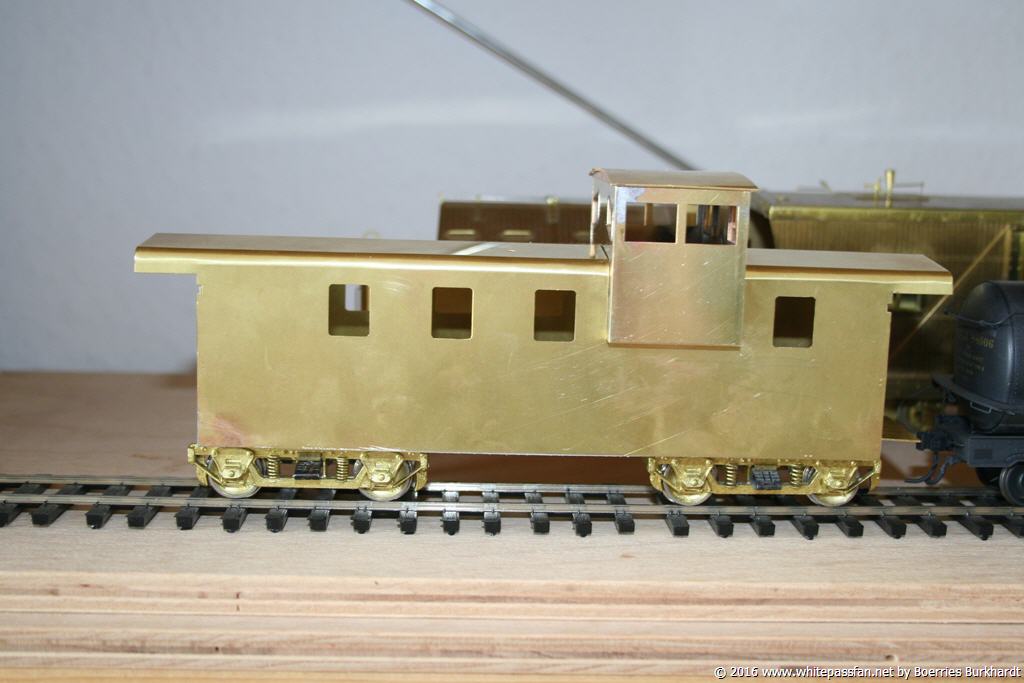

New coupola on body
901 - On3 Model
![](../../images/img_6773_450.jpg)
New coupola on body
901 - On3 Model
![](../../images/901_add_plat_storage_450.jpg)

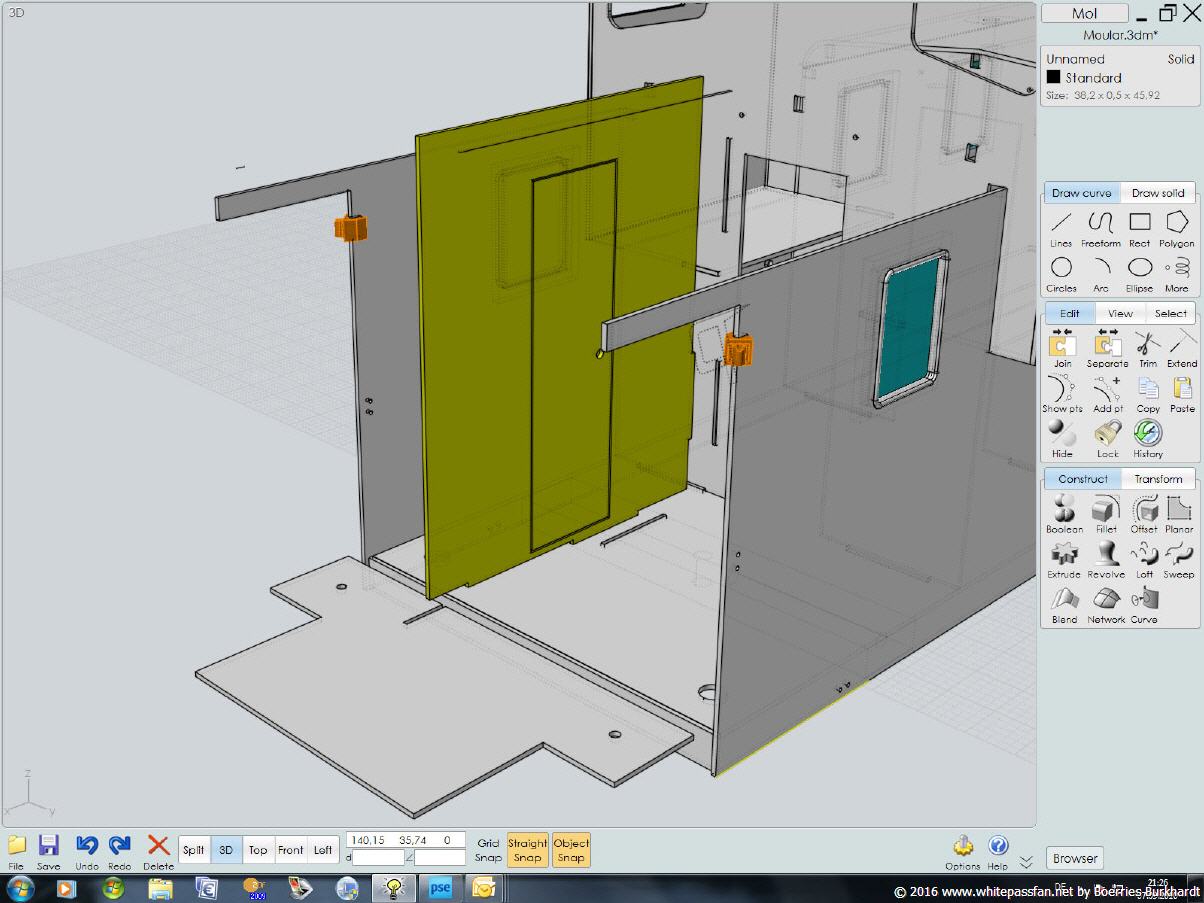

Storage room added
The seperator will be added as well as the platform will be screwed to floor.
901 - On3 Model

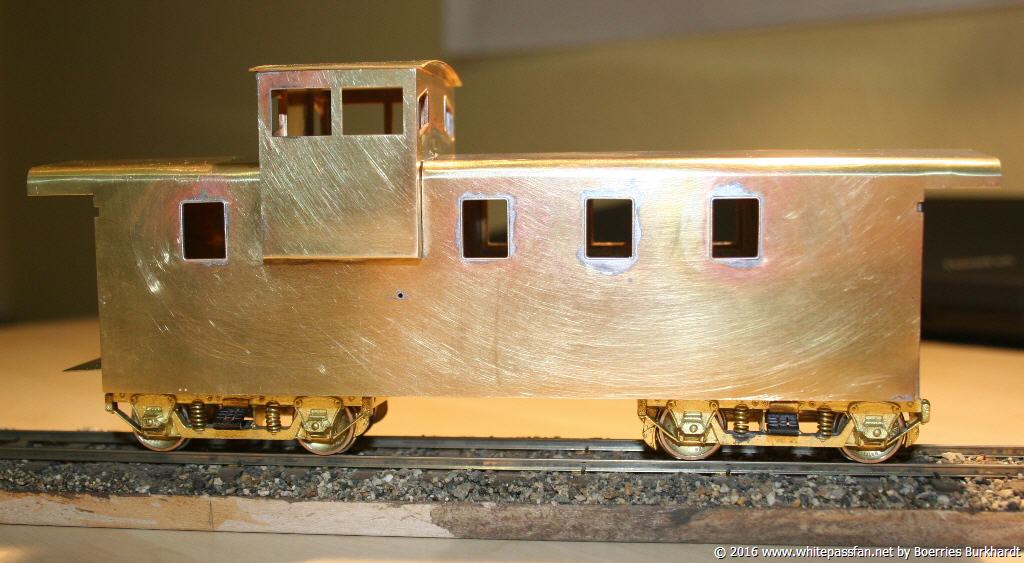

![](../../images/webimg_6783_450.jpg)
WP&YR 901
standing on narro wgauge truck on real White Pass & Yukon gravel. Thanks to Yukon Mike!
901 - On3 Model
![](../../images/901_end_door_450.jpg)

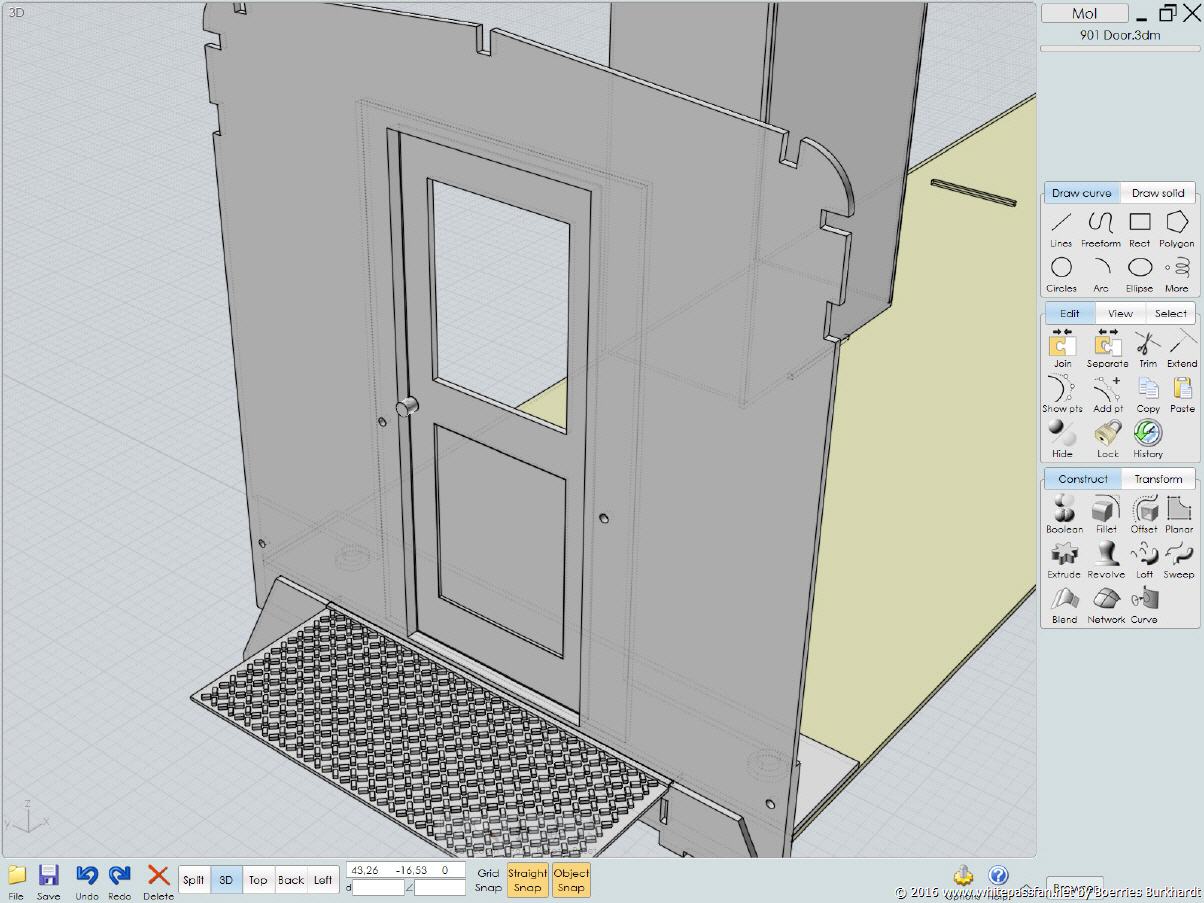

901 End View
The door will be added
901 - On3 Model

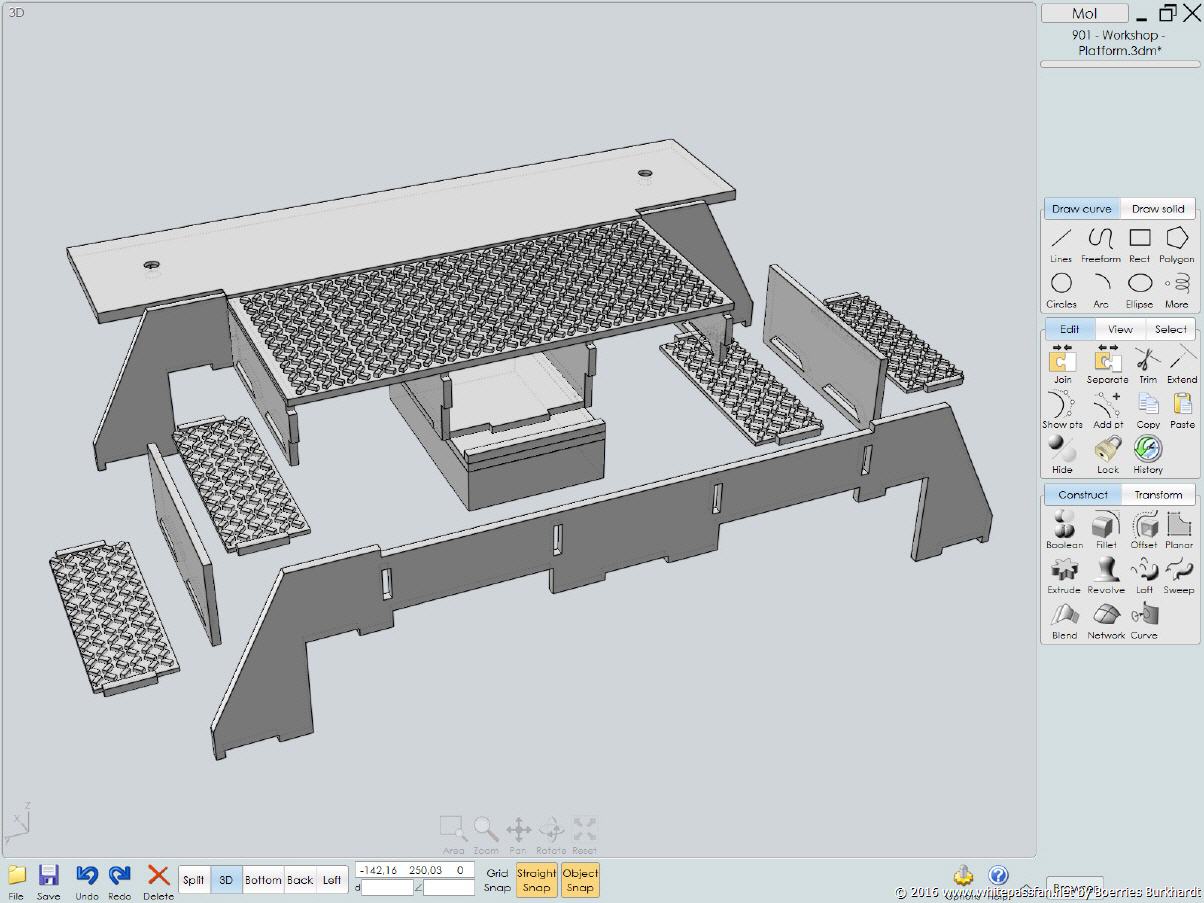

![](../../images/901_platform_parts_450.jpg)
901 Platform
Here we see all parts of the platform. They will fit all together
901 - On3 Model
![](../../images/901_platform_jig_450.jpg)

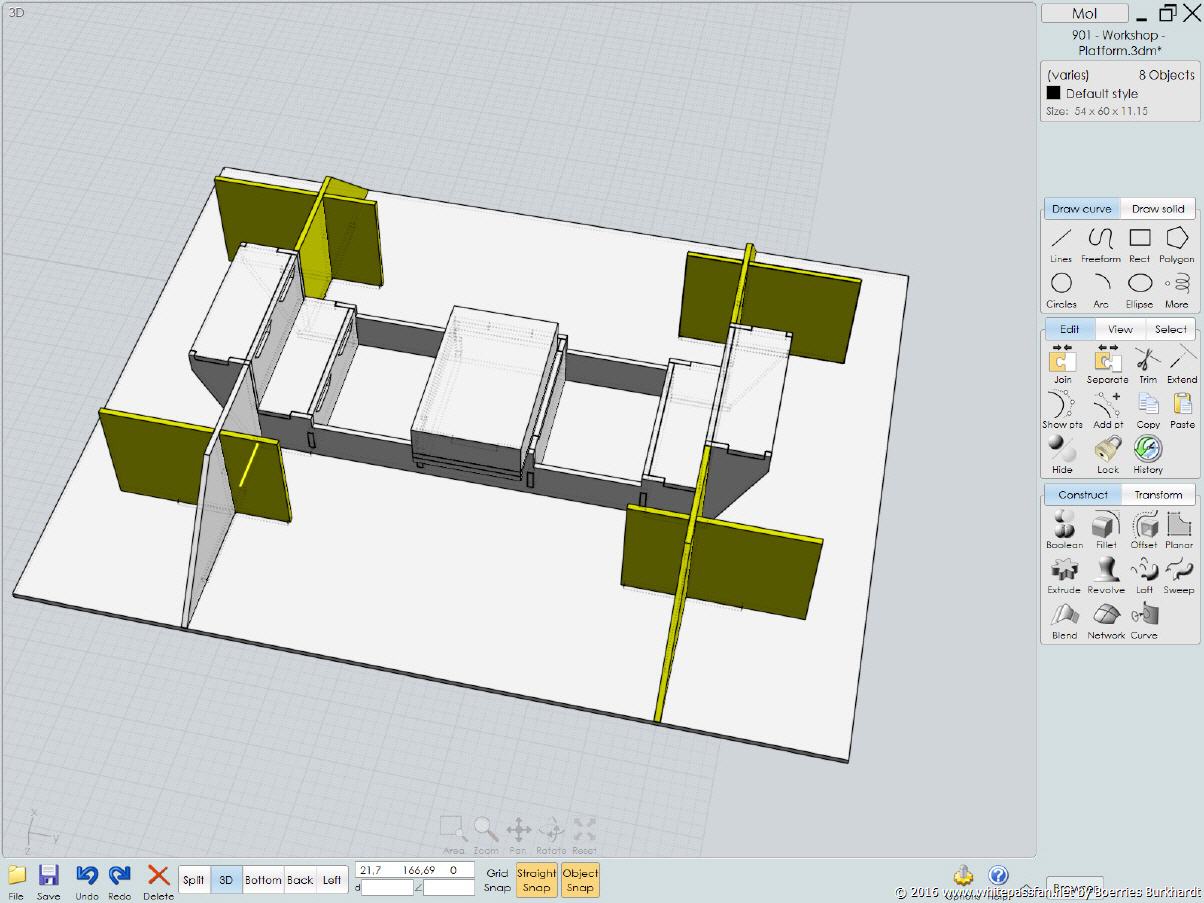

901 Jig
A special jig for the platform was designed.
901 - On3 Model
![](../../images/sheet_3_img_front_450.jpg)

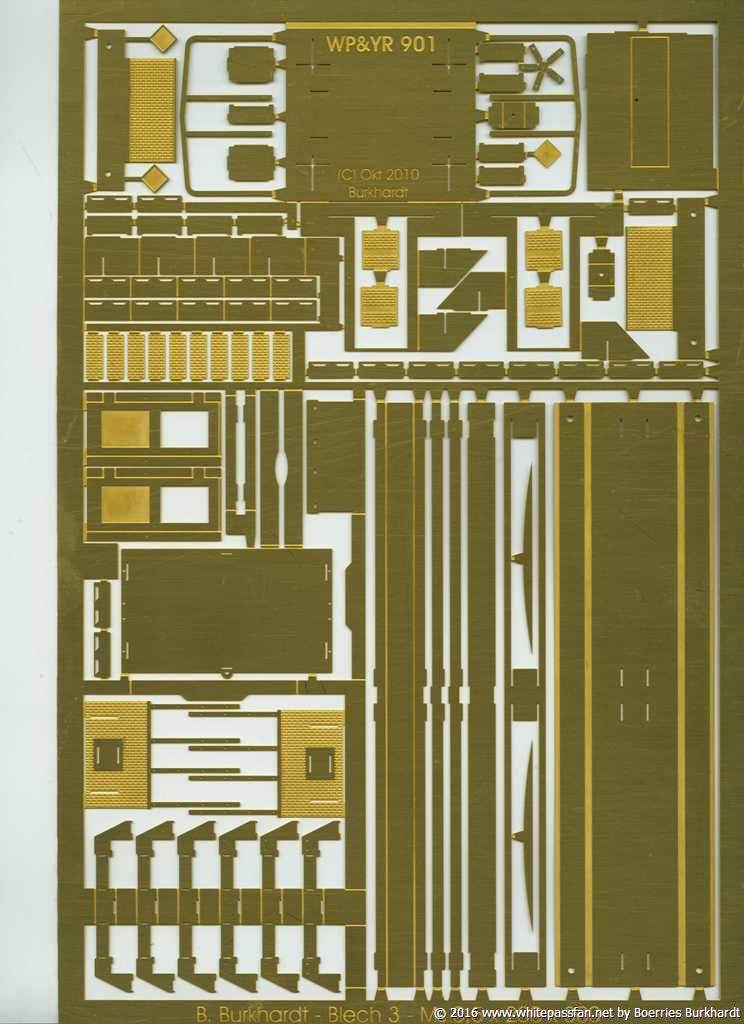

901 brass sheet
901 - On3 Model
![](../../images/sheet_3_img_back_450.jpg)

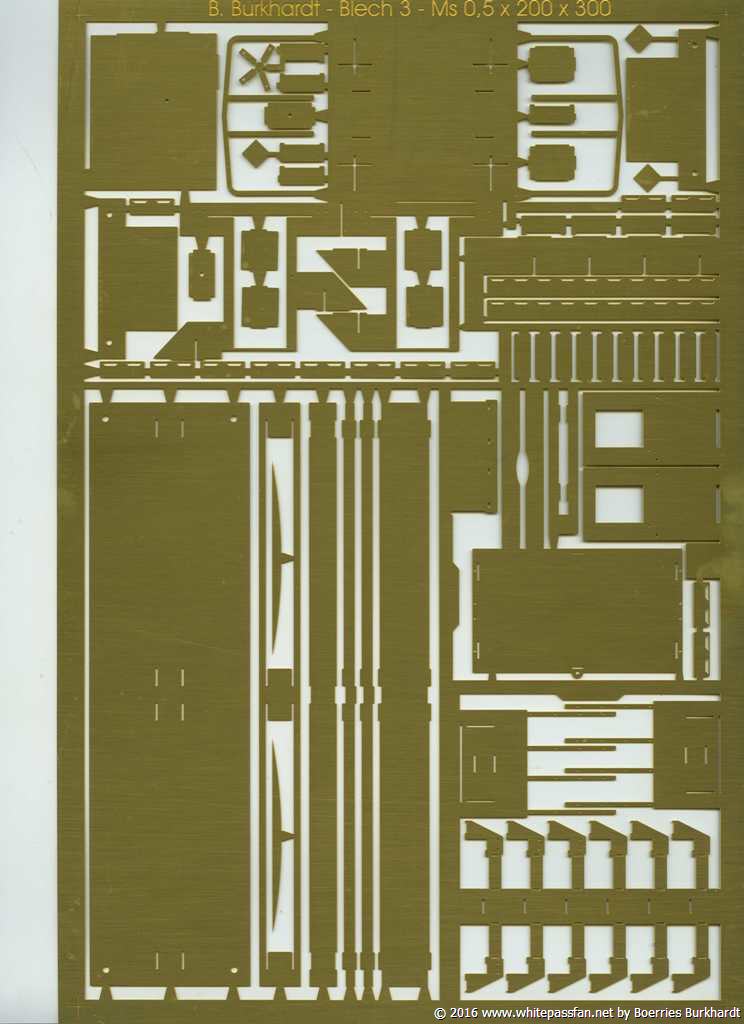

901 bass sheet
901 - On3 Model
![](../../images/web_img_6957_450.jpg)
901 - End Plattform
not connected to the plattform, the steps are ready
901 - On3 Model

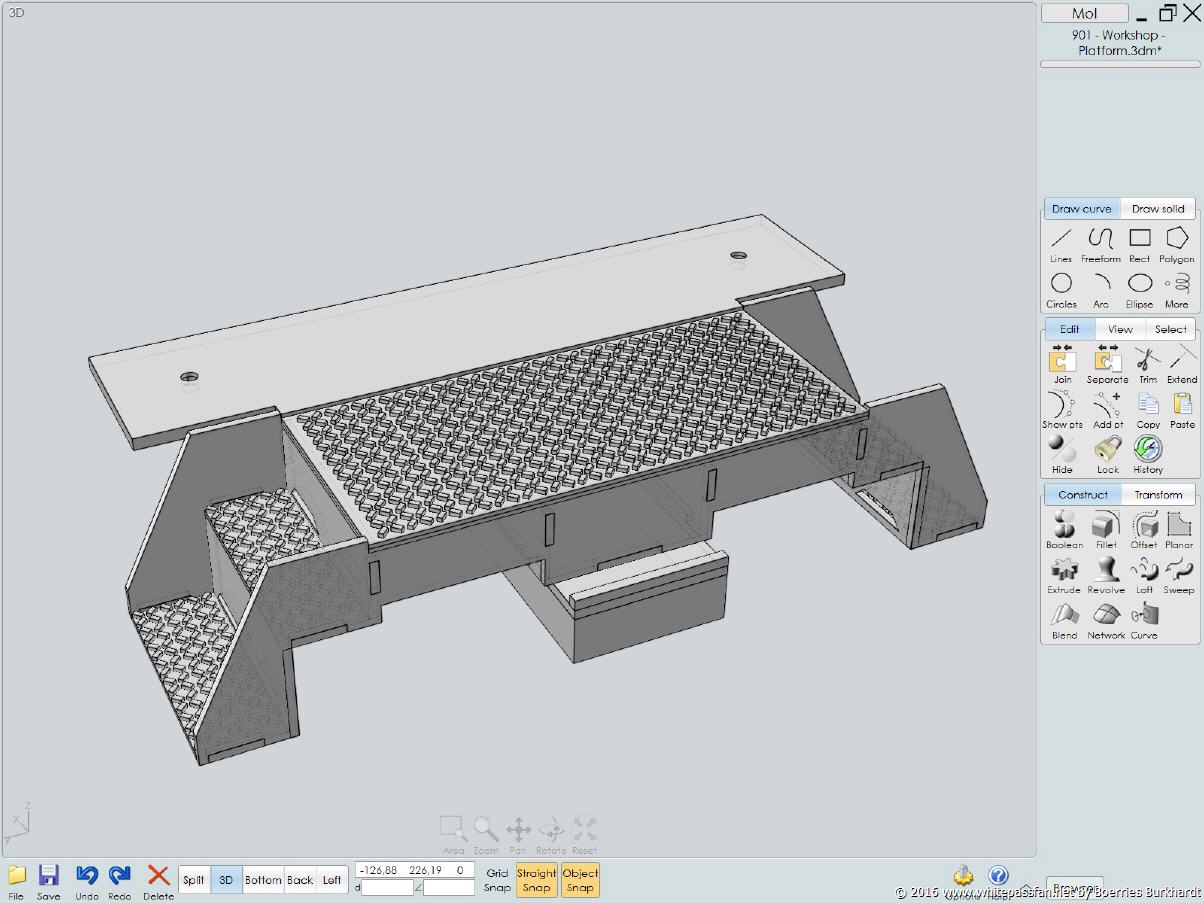

![](../../images/901_platform_view_450.jpg)
901 Platform
CAD View with Kadee Coupler box.
901 - On3 Model
![](../../images/web_img_6962_450.jpg)

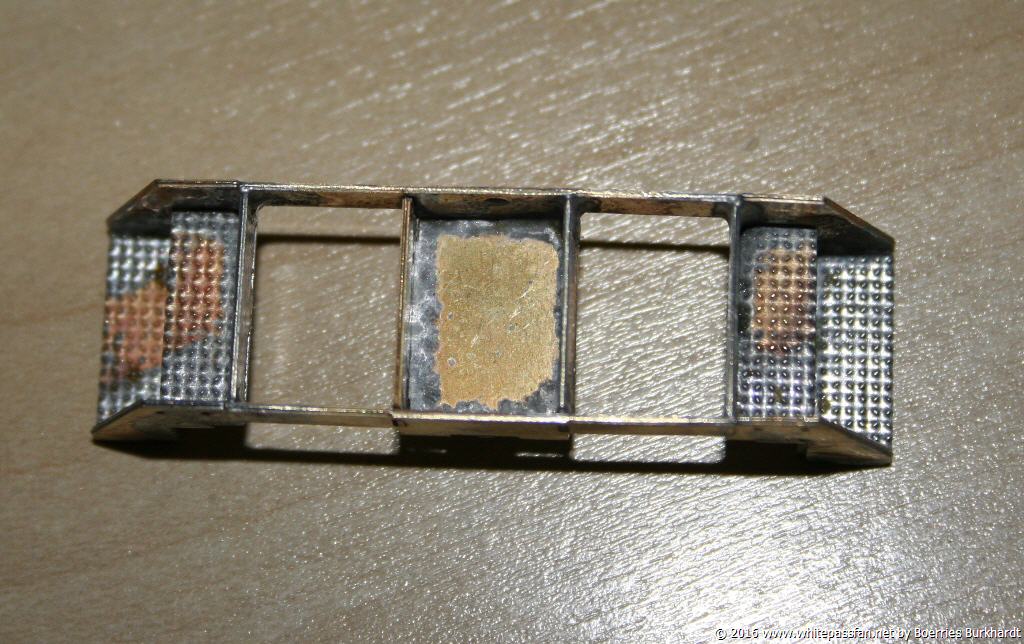

901 - Plattform in brass
Steps
901 - On3 Model
![](../../images/img_7080_450.jpg)
901 with new plattform
901 - On3 Model
![](../../images/img_7081_450.jpg)

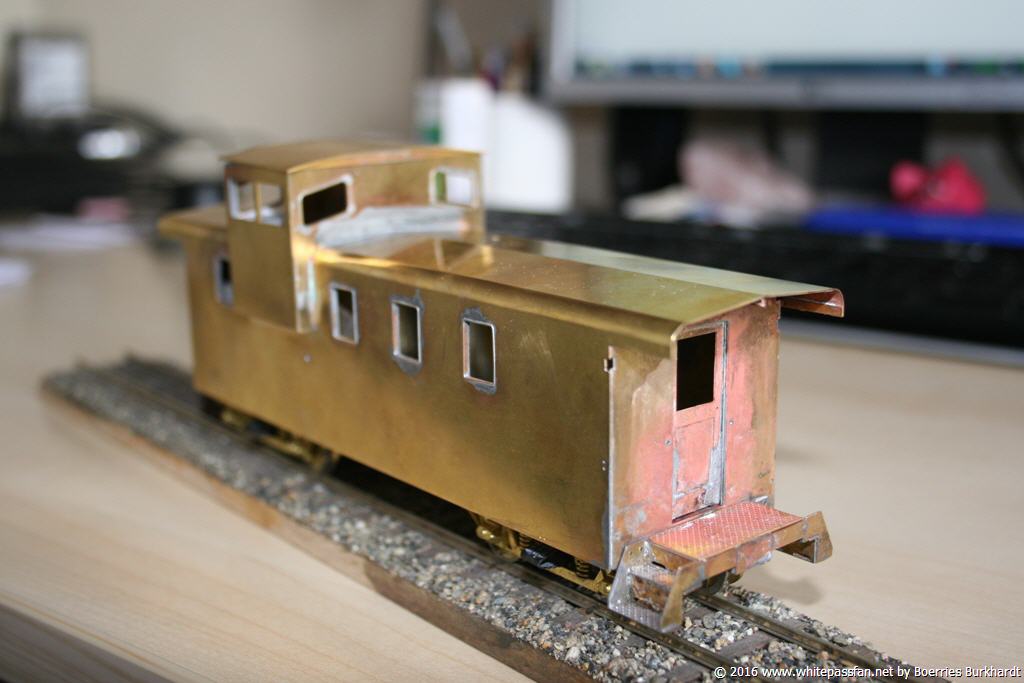

901 step are added
901 - On3 Model

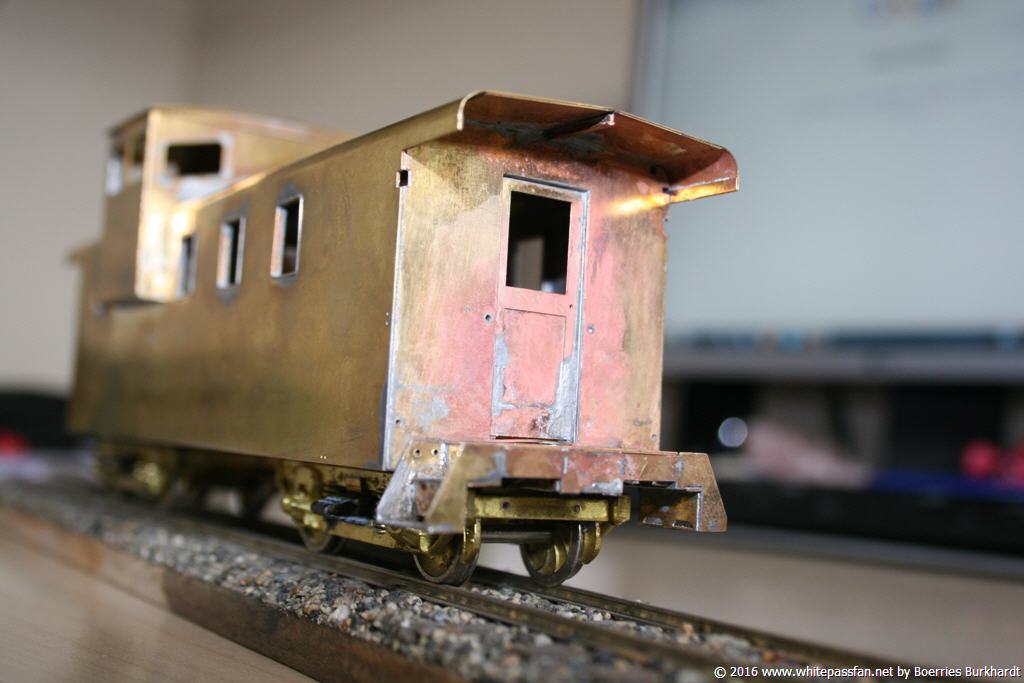

![](../../images/img_7082_450.jpg)
901 not an easy soldering job
901 - On3 Model
![](../../images/img_7084_450.jpg)

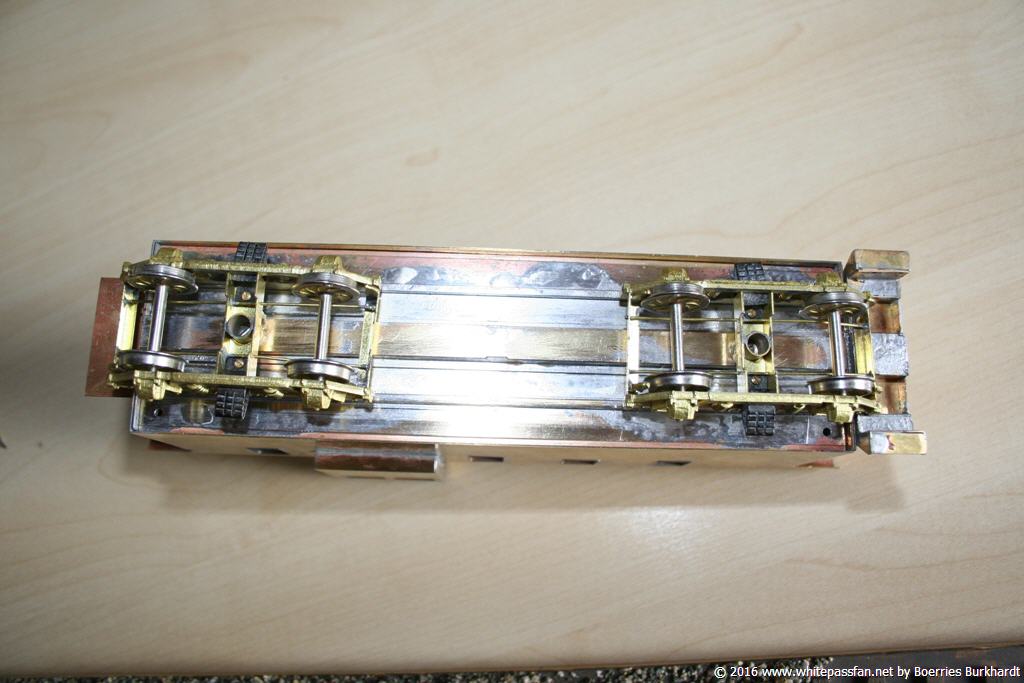

901 - New underframe
brass underframe was added.
